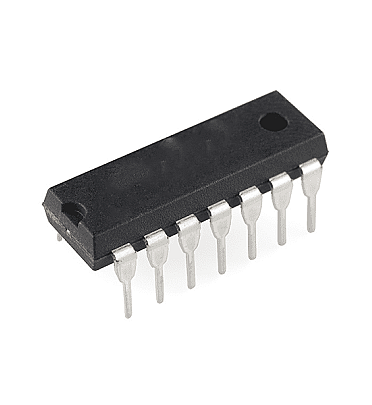

74155 Dual 2-to-4 Line Decoder/Demux (74HC155/74LS155)

Description

74155 IC Description:The 74155 IC contains two independent BCD to 1-of-16 line decoders, each of which accepts a 4-bit BCD input (ranging from 0000 to 1001 in binary, which corresponds to decimal 0 to 9) and decodes it into one of 16 output lines. This type of IC is useful in applications such as driving 7-segment displays, memory address decoding, and multiplexing.Key Features:Dual BCD to 1-of-16 Decoder/Driver: The IC contains two separate decoders that each convert a 4-bit BCD input into one of 16 outputs.Active-low Outputs: The IC’s outputs are active-low (i.e., the selected output will be LOW while all other outputs are HIGH).Binary Coded Decimal (BCD) Input: The IC accepts a 4-bit BCD input, which can represent decimal numbers 0 to 9.Output Drive Capability: The IC can drive TTL-compatible loads, which makes it suitable for driving displays, relays, or other components in digital circuits.Simple Control: The outputs are controlled by the BCD inputs, and the IC automatically selects the appropriate output based on the binary value of the BCD input.Applications:7-Segment Display Drivers: The 74155 IC is commonly used to drive 7-segment displays in digital clocks, meters, or other display applications where a 4-bit BCD input must be converted into a signal that activates the appropriate segments of the display.Memory Address Decoding: It can be used for memory address decoding where a 4-bit address needs to select one of several memory locations or devices.Multiplexing: Th
