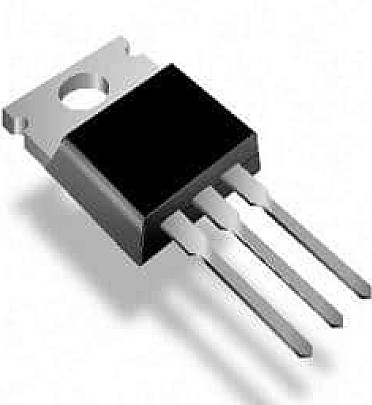

TIP132 NPN Darlington Transistor

Description

The TIP132 is an NPN Darlington transistor that is part of the TIP family of power transistors. It is designed for high-current, high-voltage applications, typically used in switching and amplification circuits. The TIP132 combines two NPN transistors in a Darlington configuration, providing high current gain and the ability to drive higher loads compared to standard single-transistor designs. Key Features of TIP132: Darlington Configuration: The TIP132 is a Darlington transistor, meaning it contains two NPN transistors in a cascade arrangement, which results in a very high current gain (typically between 1000 to 20000). This allows the transistor to amplify a small input current into a large output current. Voltage and Current Rating: Collector-Emitter Voltage (Vce): 100V This means the TIP132 can handle up to 100 volts between the collector and emitter terminals without breaking down. Collector Current (Ic): 8A It can carry a maximum current of 8A (Amperes) through the collector, making it suitable for driving high-current loads such as motors, solenoids, and other power-hungry components. High Current Gain: The Darlington configuration provides a high current gain, meaning a small input current at the base can control a much larger current at the collector. This is beneficial for controlling larger loads with a low-power input signal (e.g., from a microcontroller or low-voltage logic circuit). Saturation Voltage (Vce_sat): The saturation voltage is typically 2V when fully
