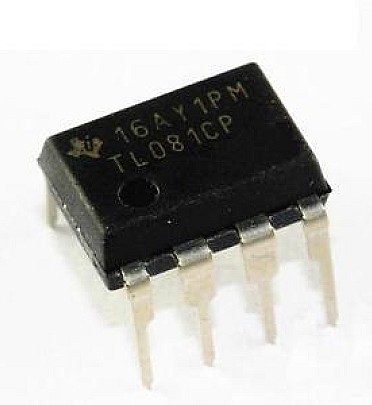

TL081 JFET Single Op-Amp

Description

The TL081CP is a popular operational amplifier (op-amp) that is widely used in various analog applications. Manufactured by Texas Instruments, it is a JFET-input op-amp designed for general-purpose use with a focus on high performance, low power consumption, and precision. Here’s a detailed overview of the TL081CP: TL081CP Operational Amplifier Overview: Type: Low-noise JFET-input operational amplifier. Package: Typically available in DIP-8, SOIC-8, and other surface-mount packages. Technology: JFET-input design provides very high input impedance, low input bias current, and reduced offset voltage compared to traditional bipolar op-amps. Power Supply: Single or dual supply configurations are supported, with a typical range of ±3V to ±18V. Key Features: Low Input Offset Voltage: The TL081CP has a low input offset voltage of around 3mV (max), which ensures better accuracy in precision applications where small input differences must be detected and amplified. Low Input Bias Current: The input bias current is typically around 30nA, which is ideal for high-impedance applications like sensor interfaces or buffer stages. High Input Impedance: Thanks to the JFET input, the TL081CP boasts a high input impedance, typically 10^12 ohms, which minimizes the loading effect on sensitive signal sources. Wide Power Supply Range: The TL081CP can operate from a single supply voltage ranging from +3V to +36V or a dual supply of ±1.5V to ±18V, providing flexibility for various designs. Low Power
