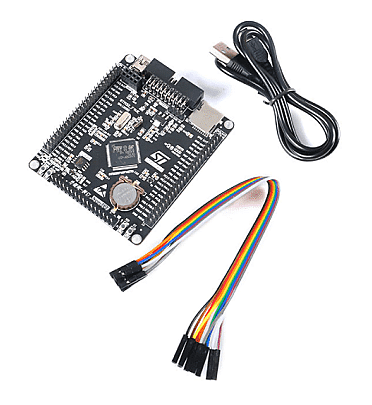

STM32F407 Dev Board

Description

It is a small STM32 Arduino compatible development board that features an STM32F407VET6 device as the microcontroller, supports further expansion. It is ideal for starting application development with STM32F family.Features:Onboard: SD card slot.RTC Battery: CR1220.Wireless Communication: NRF2401 Interface.Data storage: W25Q16.Support FMSC LCD Interface.Multi-user keys.All the CPU-10 lead.Arduino compatible.2.54mm integer multiples spacing pin.STM32F407VET6: the high performance STM32 MCU features:Core: Cortex-M4 32-bit RISC.Feature a full set of single-cycle DSP instructions.Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz.Operating Voltage: 1.8V-3.6V.Package: LQFP100 Storage Resources: 512kB Flash, 192+4kB SRAM.Resource: 3 x SPI,3 x USART, 2 x UART, 2 x I2S, 3 x I2C; 1 x FSMC,1 x SDIO,2 x CAN; 1 x USB 2.0.FS/HS Controler(with DMA); 1 x USB HS ULPI; (used for external USB HS PHY)1 x 10/100 Ethernet.MAC;1 x 8 to 12-bit parallel camera interface; 3 x AD(12 bit,1us),2 x DA(12 bit). Package Includes:1 x STM32 Cortex-M4 STM32F407VET6 Development Board
