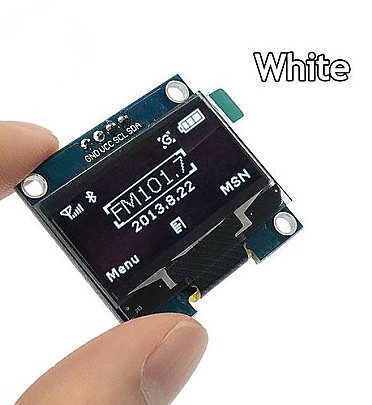

Graphical LCD 128×64

Description

Product Description1.3 inch OLED screen with black and white or black and blue color display128x64 resolution for clear display and high contrastLarge viewing angle: greater than 160° (one screen with the largest viewing angle in the display)Wide voltage supply (3V~5V), compatible with 3.3V and 5V logic levels, no level shifting chip requiredWith IIC bus, only a few IOs can be used to light up the displayUltra-low power consumption: normal display is only 0.06W (far below the TFT display)Military-grade process standards, long-term stable workProvides a rich sample program for STM32, C51, Arduino, Raspberry Pi and MSP430 platformsProvide underlying driver technical supportProduct Parameters Name Parameter Display Color white/blue SKU MC130GW/MC130GB Screen Size 1.3 inch Screen Type OLED Driver IC SH1106 Resolution 128*64 (Pixel) Module Interface IIC interface Active Area 29.42x14.7 mm Touch Screen Type No touch screen Touch IC No IC Module PCB Size 33.50x35.40 mm Visual Angle >160° Operating Temperature -20℃~60℃ Storage Temperature -30℃~70℃ Operating Voltage 3.3V~5V Power Consumption TBD Rough Weight(Package containing) 10g DownloadDATASHEET & EXAMPLE CODE
