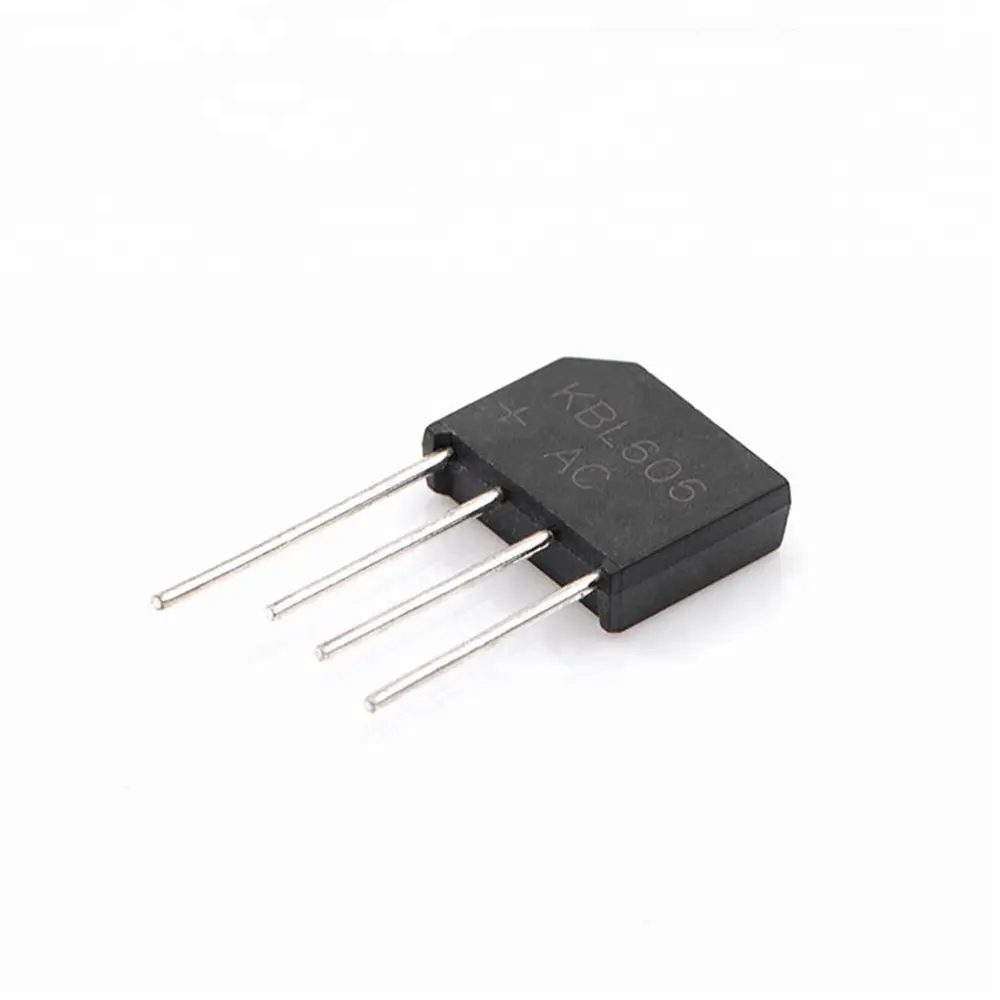

Bridge Rectifier KBL606 6A 600V

Description

Features Ideal for printed circuit board mounting The plastic material used carries Underwriters Laboratory flammability recognition 94V-0 Built-in printed circuit board stand-offs High case dielectric strength High temperature soldering guaranteed 265C/10 seconds at 5 lbs (2.3kg) tension Maximum Ratings & Thermal Characteristics Parameter Symbol KBL606 unit Maximum repetitive peak reverse voltage VRRM 600 V Maximum RMS bridge input voltage VRMS 420 V Maximum DC blocking voltage VDC 600 V Maximum average forward rectified output current at TA=50 C IF(AV) 6.0 A Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) IFSM 200 A Rating for fusing ( t<8.3ms) I 2 t 166 A2sec Typical thermal resistance per element (1) ReJA 10.0 C / W Operating junction and storage temperature range TJ, TSTG -55 to +150 C Electrical Characteristics Parameter Symbol KBL606 Unit Maximum instantaneous forward voltage drop per leg at 6.0A VF 1.1 V Maximum DC reverse current at rated TA =25 C DC blocking voltage per element TA =125 C IR 10 1000 uA KBL606 Datasheet
